Hyundai Genesis: Automatic Transmission Control System / 35R Clutch Control Solenoid Valve(35R/C_VFS) Schematic Diagrams

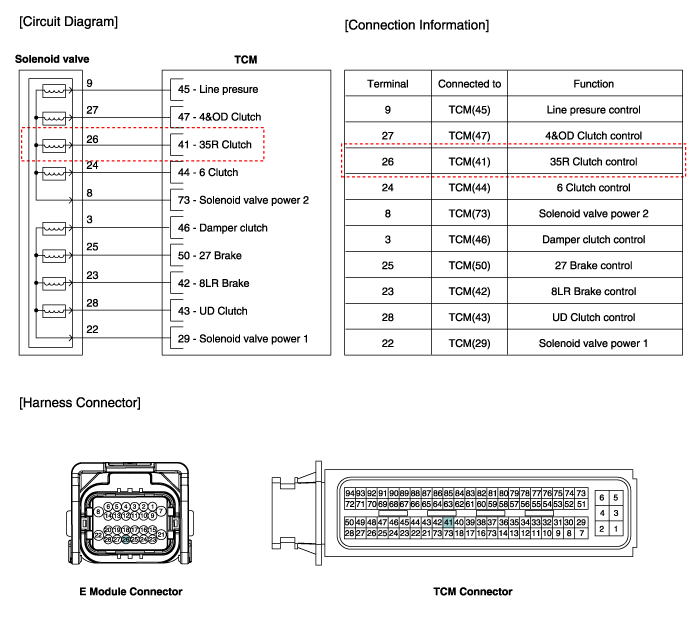

Circuit Diagram

35R Clutch Control Solenoid Valve(35R/C_VFS) Specifications
Specifications Direct control VFS[35R/C] ? Control Type : Normal high type Control Pressure kpa (kgf/cm?, psi)0~2108.42 (0~21.5~305.80)Current value(mA)0~1100 Internal resistan ...

35R Clutch Control Solenoid Valve(35R/C_VFS) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Disconnect the E Module connector. 3. Measure resistance between solenoid valve terminals. 4. Check that the resistance is within the spec ...
